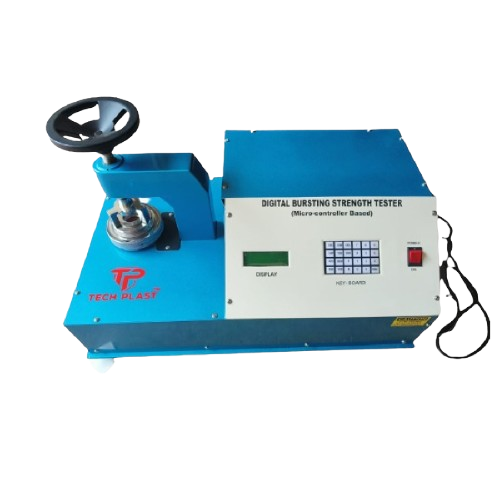

Bursting Strength Tester
Application: – A burst test is a destructive test and performed to determine the pressure overload capacity of pressure containing parts. The tests are performed with a fluid. This test is often performed as a pre-production test to meet safety and quality standards.
Specification:
• Bright LCD Display of reading with peak holds facility.
• Load Capacity -40Kg/ Cm2 (or as per your requirement).
• Display resolution-0.0 1Kg/ cm2. Microprocessor based
model with port facility also available on request. Various
measuring capacity according to the requirements are
available for greater accuracy.
• Pump Flow Rate -95 + 5 ml/min for paper, 170 + 15 ml/min.
• Board Measuring Range : 0-20 kg/cm2 for paper and 0-40
kg/cm2 for Board or 40 kg or as per your requirement Fully
electronics Controlled,
• Paper & Board Range Controlled by Electronic Sensor Based.
• Least Count : 0.1kg/cm2
• Accuracy: + 1% of Read Out Value. Accessories : 1 No Diaphragm, 1 No Aluminum Foil For calibration,
• 1 No Spanner(key),
• 1 No power cable,
• 1 bottle Oil.
