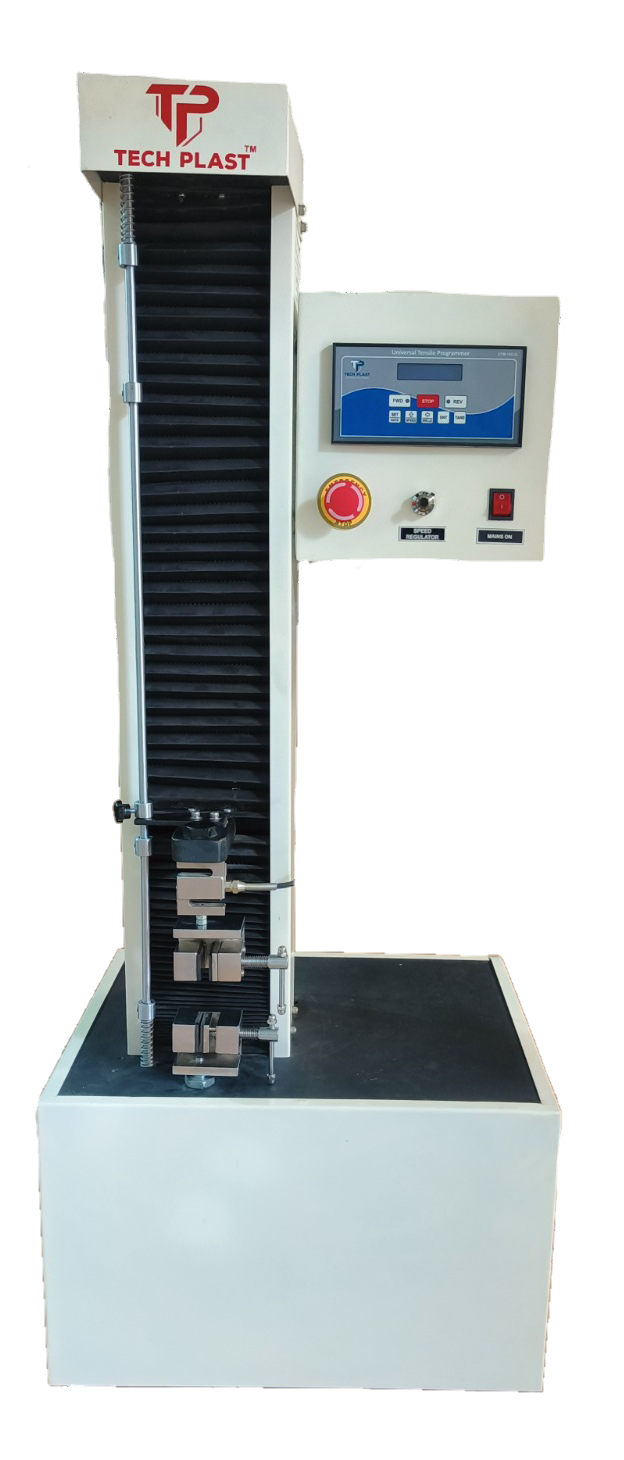

Peel/ Seal/ Bond and Adhesion Strength Tester
“TECHPLAST” is Leading Manufacturer of Peel / Seal / Bond And Adhesion Tester.
Computerized Sealing / Bond / Peel Strength Tester to determine properties of Seal, Bond and Peel as per ASTM D 638 & ISO 527.
• Load Capacity:50 Kg
• Angle:180°, &90°
• Speed: Variable with AC frequency drive.
• Pre-Set Speed: 50, 75,100mm/min.
• Maximum Size of Specimen: 300mm X 300mm
• Minimum Grip Separation: 25mm
• Maximum Grip Separation: 300mm
• Microprocessor based load indicator: Accuracy of +/- 0.05% of load indicate
• Newton or Kg. can be selected.
• Load cell I/P – one
• Extension meter: Least count of 1 mm through proximity/encoder switch.
• Over load excess elongation protection provided.
• One pair of grips provided to hold the samples.
• Table Top Model
• Paint: Powder Coating
• Power: 1 Phase, 230V Ac, 50 HZ.
