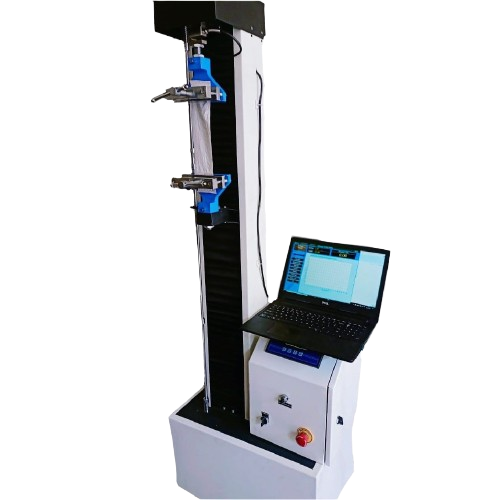

Fabric Strength Tester
“TECHPLAST” is Leading Manufacturer of Fabric Strength Tester.
Fabric tensile strength tester, or fabric tensile strength machine, also named tensile strength testing machine is designed to test a wide range of materials, including fabric, leather, plastic, paper, etc, in tension, compression, flexure, bursting, shear, tear, elongation, constant load, elastic, thread slip, peeling and other mechanical properties. Fabric Tensile Strength Tester complies with ISO 13934.1/2, ISO 13935.1/2, ISO 9073.3/4, etc. And our fabric measuring machine for sale.
⦁ Load Capacity: 100 kg to 5000 Kg
⦁ Speed: Variable with AC frequency drive.
• Pre-Set Speed: 10 TO 400 mm/min.
• Minimum Grip Separation: 25 mm
• Maximum Grip Separation: 700mm
⦁ Fabric Tensile Grip:- 01 Set.
⦁ Microprocessor based load indicator: Accuracy of +/- 0.05% of load indicated
• Newton or Kg. can be selected.
• Load cell I/P – one
• Extension meter: Least count of 1 mm through proximity/encoder switch.
• Over load excess elongation protection provided.
• One pair of grips provided to hold the samples.
• Floor Model
• Paint: Powder Coating
• Power:230 V / 50 Hz & 440V Ac/ 3 phase, + N, E.
