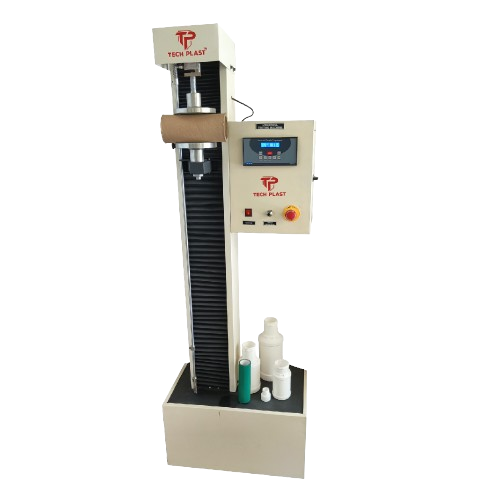

Core Compression Tester
“TECHPLAST” is Leading Manufacturer of Core Compression Tester.
The Core Compression Tester / Core Collapsing Strength Tester can test the horizontal load bearing strength or crushing force of Paper Tubes and Paper cores used in winding Yarn / Textiles / Paper / Foils / Films / Laminates, etc.
This winding tension of the material being wound, creates a squeezing / crushing force acting radially inwards on the tube / core.
Poor quality cores, collapse inwards under this stress.
Suitable for:
• Flat Crush Test (using flat adopters ISO 11093)
⦁ Radial Crush Test (using curved adopters)
⦁ Load Capacity: 20 kg to 5000 Kg
⦁ Speed: Variable with AC frequency drive.
• Pre-Set Speed: 10 TO 100 mm/min.
• Minimum Grip Separation: 25 mm
• Maximum Grip Separation: 700mm
⦁ Microprocessor based load indicator: Accuracy of +/- 0.05% of load indicated
• Newton or Kg. can be selected.
• Load cell I/P – one
• Extension meter: Least count of 1 mm through proximity/encoder switch.
• Over load excess elongation protection provided.
• One pair of grips provided to hold the samples.
• Floor Model
• Paint: Powder Coating
• Power:230 V / 50 Hz & 440V Ac/ 3 phase, + N, E.
⦁ Compression Grip:- 01 Set.
