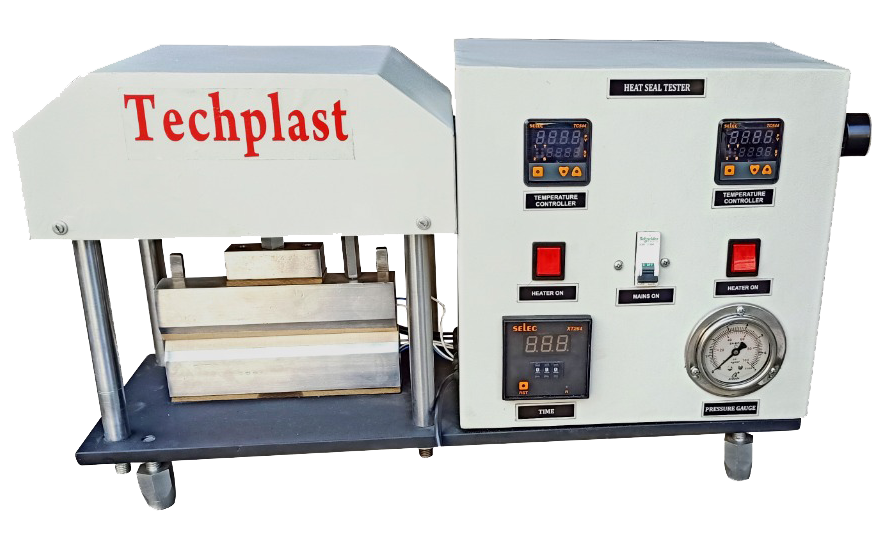

Heat Seal Tester
Application: –To Determine Suitable Scaling Parameters of Films.
Specification:
• Temperature zone: Two zone
• Controller: Auto tuned PID controller with temperature range up to 200ºC having resolution of 0.1ºC.
• Clamping Jaws: One fixed and second movable by pneumatic action.
• Adjustable force: 15-30 Kg (Analog or Digital Pressure Display)
• Adjustable temperature: 0- 199.9°C(Digital P.I.D Controller)
• Adjustable dwell time: 0-9.99 seconds (Digital Display)
• Seal Pattern: Straight lined or as per your design.
• Sealing Depth: 6mm / 8 mm 1 1o mm / 12 mm or as desired.
• Sealing Length: 2 / 4 / 6 / 8/ 10/ 12 Inches or as desired.
• Power requirement: 230 Volts, 60 Hz, Single phase – 16ampere.
