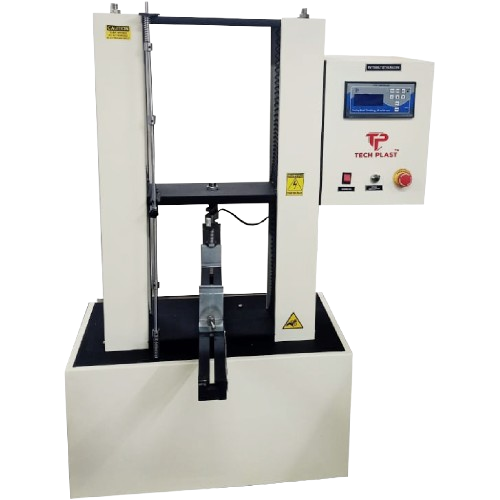

Flexural strength testing machine

Flexural Strength Testing Machine / Flexural Testing Machine (ASTM D 790)

“TECHPLAST” is Leading Manufacturer of Flexural Strength Testing Machine .

The flexural strength of a material is defined as its ability to resist deformation under load. For materials that deform significantly but do not break, the load at yield, typically measured at 5% deformation/strain of the outer surface, is reported as the flexural strength or flexural yield strength. The test beam is under compressive stress at the concave surface and tensile stress at the convex surface.

⦁ Load Capacity: 20 kg to 500 Kg

⦁ Speed: Variable with AC frequency drive.

• Pre-Set Speed: 10 TO 60 mm/min.

• Minimum Grip Separation: 25 mm

• Maximum Grip Separation: 700mm

⦁ Microprocessor based load indicator: Accuracy of +/- 0.05% of load indicated

• Newton or Kg. can be selected.

• Load cell I/P – one

• Extension meter: Least count of 1 mm through proximity/encoder switch.

• Over load excess elongation protection provided.

• One pair of grips provided to hold the samples.

• Floor Model

• Paint: Powder Coating

• Power:230 V / 50 Hz
