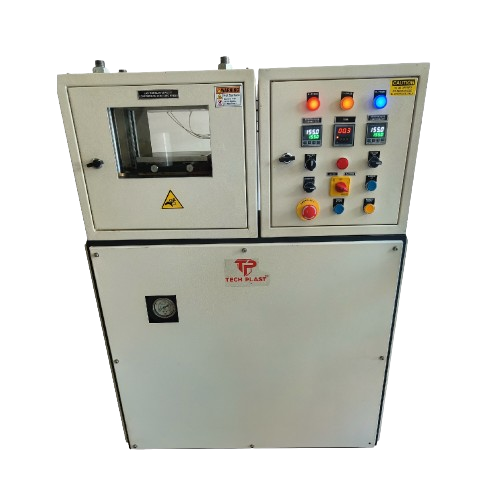

Lab Model Hydraulic Press
Application: –Hydraulic Compression Press for Plastic Lab, Test Lab Press, and Hydraulic compression press used for Research and Development, Plastic Laboratory Testing Equipment’s, Compression Tester, etc.
Specification:
• Main Body : – M.S Body
• Platen Size : – 200 mm × 200 mm
• Maximum Temperature Range : ambient to 300 C
• Cylinder Stock : 200 mm
• Heating Load : 1.2 Kw/Platen
• Maximum Pressure : 120 bar
• Hydraulic Cylinder for making sheets
• Limit switch for cutting off lower stock
• Spare Die For Making Sheet : 2 mm, 3mm, 4mm
• Pressure switch for maintain pressure
• Proximity sensor for double safety purpose
• Solenoid vale with relay for forward and reverse.
• Platen type heater for heating the granules
• Corrugated pipe for cooling : 04 No’s (2 meter)
• Hydraulic power pack for operating machine.
• Motor Capacity : 2 Hp
• Digital PID Temperature Controller
• Controller Make: Selec
• Digital Timer Make: Selec
• Power Supply : 380 V AC / 60 Hz +N, E
