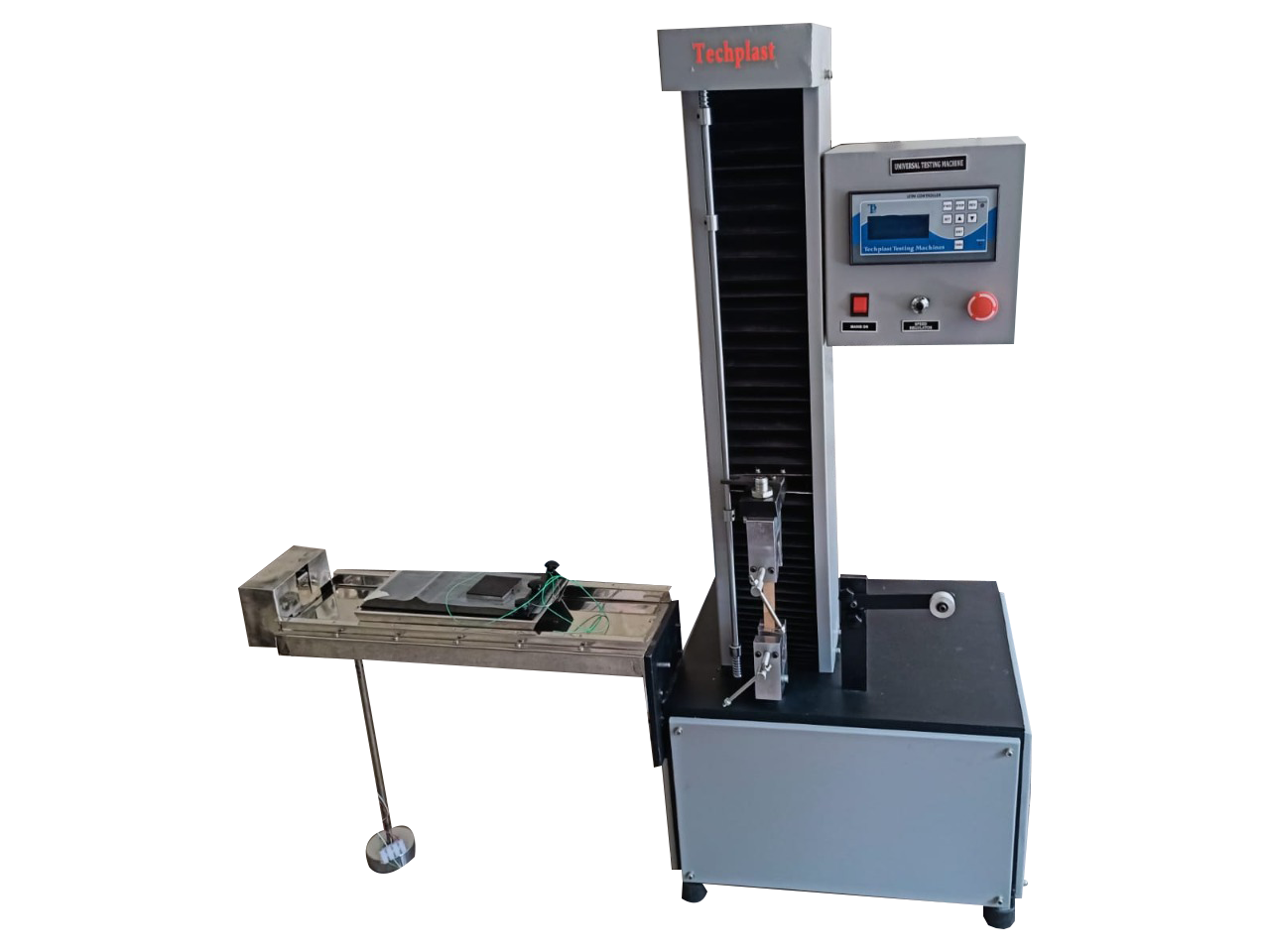

Tensile Testing Machine with COF
Computerized Tensile with cof tester to determine properties of Tensile & Elongation as per ASTM D 638 & ISO 527, Compression as per ASTM D 695 & Flexural (three point bending), as per ASTM D 790 with auto stop, auto reverse facility & direct display of result through 32 bit micro controller having 4 lines and 20 character display. Suitable for checking all types of polymers, compounds, composite materials, fibre reinforced plastics (FRP) and polymeric materials.
Specification:
Advanced load sensor sensing through advanced electronic LCD card.
• Speed Control through Variable Frequency drive. (150/ 300 mm per min.)
• Highly sensitive load sensor with linearity feature and repeatability • Cross head travel length: 600 mm without grips Single column rugged structure
• Safety limit switches for over travel safety.
• Hardened lead screws for frictionless movement Load cell calibrated by NABL approved proving ring/dynamometers self-calibration feature for dual load cell different capacity. High accurate micro-controller based system controls.
• User Friendly operation with Intuitive key pad and robust architecture
Inbuilt Tensile & COF fixture is optional.
• Easy Data Management and result peak hold facility.
• Bright LCD display Print of test reports with thermal printer feature is available • Secured working with key protection feature
• Immediate analysis of results after test with complete accuracy & precision.
* Equipment with other capacities could also be supplied as per the requirement.
All results such as Peak load, Elongation at Peak load, Break load, Elongation at break load, % elongation at Peak, % elongation at Break, Tensile strength at Peak, Tensile strength at Break, Flexural stress, Compression Strength, Secant Modulus, Tangent Modulus & Flexural Modulus are directly displayed Microcontroller as well as through PC software
