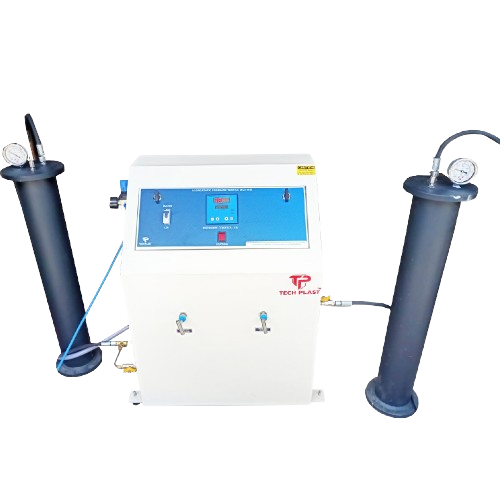

Digital Hydrostatic Pressure Tester
As per IS 4984 and IS 4985 to check the creep rupture of pipe when subjected to internal pressure under a specified condition. We are Digital Hydrostatic Pressure Tester Manufactuturers.
Specification:
• Pressure range : 0 – 100 bar*.
• No. of stations : 8 nos.
• Pressure input : Through compressed air having pressure upto 5 kg/cm.sq
• Pressure output: through hydro-pneumatic pump.
• Time range : 0 – 999.9 hours.
• Panel mounting : Trolley with castor wheels.
• Paint : Powder coated.
• Power : 230 Volts, 50Hz, single phase.
• Direct display through MMI : Set pressure, Actual pressure, Set time, Actual time, Set temperature and Actual temperature.
• Graphic display and printout through PC : In addition to the above values Pressure & Temperature Vs Time graph could be obtained for any station by attaching a printer to the PC.
