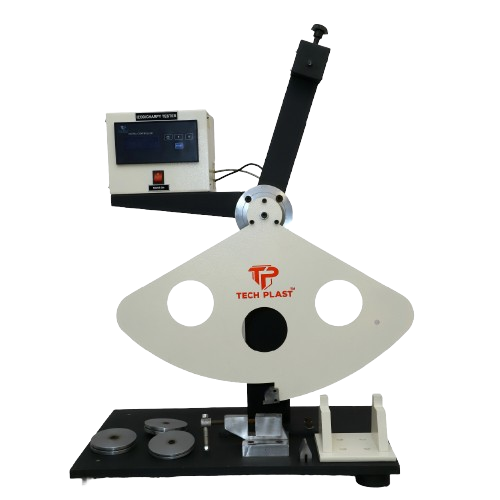

Izod/Charpy Tester
Application: –In Automobile and Composite industries widely used. Izod/Charpy tester is used to determine Izod and Charpy impact strength absorb by composite material.
Specification:
• Capacity:Up to 25.00 Joules.
• Release angle of pendulum: 150 degree.
• Range of four scales: 0-2.71 Joules, 0-5.42 Joules, 0-10.84 Joules, 0-21.68 Joules and 0-25.00 Joules.
• Minimum resolution on scale: 0.02 Joule, 0.05 Joule, 0.1 Joule, 0.2 Joule and 0.2 Joule respectively.
• Paint: Powder coated.
• Power: 230 Volts, 50 Hz, single phase.
• Direct display through microcontroller: Impact strength in joules/meter and kg-cm/cm.
