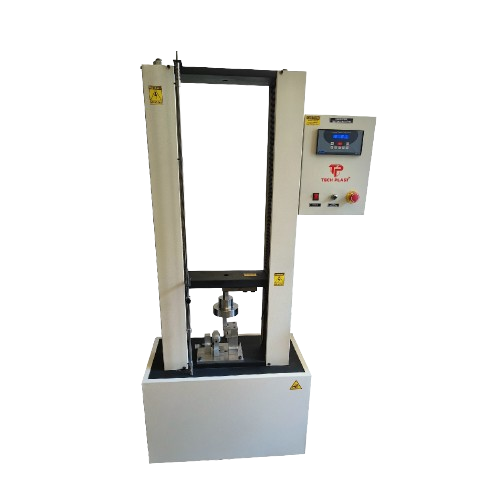

Universal Testing Machine
Tensile test is a measurement of ability of material to withstand forces that tends to pull it apart and to determine to what extent the materials stretches before breaking.
The “Techplast Testing equipment” UTM gives highly accurate force measuring system with hi-tech design and is available in different models for testing a variety of materials. Load cells, grips, fixtures can be interchanged easily to perform different tests like Flexural, Compression, Co-efficient of Friction, Peeling and bonding strength.
Application: – A universal testing machine (UTM), also known as a universal tester, materials testing machine or materials test frame, is used to test the tensile strength and compressive strength of materials.
Specification:
Load cells Capacity: 500 KG, 1 TON, as per your requirement
Available Model: Single Screw, Twin Screw,
Speed range: 1 MM/minute to 500MM/minute
Cross Travel: Up to 700 mm*
Paint: Powder coated
Power Supply: 230 Volts, 50 Hz, single phase / 3 Phase
⦁ Load Capacity: 20 kg to 10000 Kg
⦁ Single & Multi Yarn Test.
⦁ No of Test: - Tensile, Elongation, Compression, Flexural , MOE/MOR.
⦁ Speed: Variable with AC frequency drive.
⦁ Pre-Set Speed: 10 TO 400 mm/min.
⦁ Tensile, flexural, compression Grip: - 01 Set
⦁ Minimum Grip Separation: 25mm
⦁ Maximum Grip Separation: 700mm
⦁ Microprocessor based load indicator: Accuracy of +/- 0.05% of load indicated
⦁ Newton or Kg. can be selected.
⦁ Load cell I/P – one
⦁ Extension meter: Least count of 1 mm through proximity/encoder switch.
⦁ Over load excess elongation protection provided.
⦁ Floor Model
⦁ Paint: Powder Coating
⦁ Power: 230V Ac / 50 HZ & 440 V AC / +N, E / 3 PHASE
