VSP/HDT Apparatus
Application: – As per ASTM D – 1525 and ASTM D – 648 as well as ISO 306 and ISO 75 to determine vi-cat softening temperature and heat deflection temperature (heat distortion temperature) of polymers, compounds and engineering plastics.
Specification:
• Temperature range:From ambient to 300 °C.
• No of stations: With Options Of 2 Stations to 6 Stations
• Material of construction: Inner bath: S.S
• Outer body: M.S
• Rate of heating: 120 °C / hour and 50 °C / hour.
• Sensor: Range up to 10mm with resolution of 0.01mm.
• Paint: Powder coated.
• Power: 230 Volts, 50Hz, single phase.

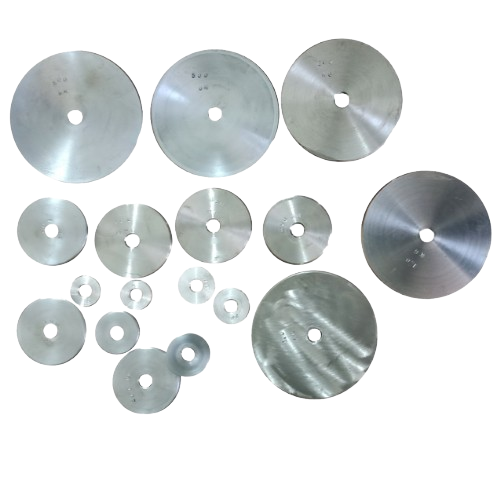

• Weights: A set of weights ranging from 5grams to 2000grams would be supplied for incremental loads.
• Direct display through microcontroller: VSP and HDT Result.
Reports consisting values of vicat softening temperature and heat deflection temperature could be obtained on Microcontroller.
