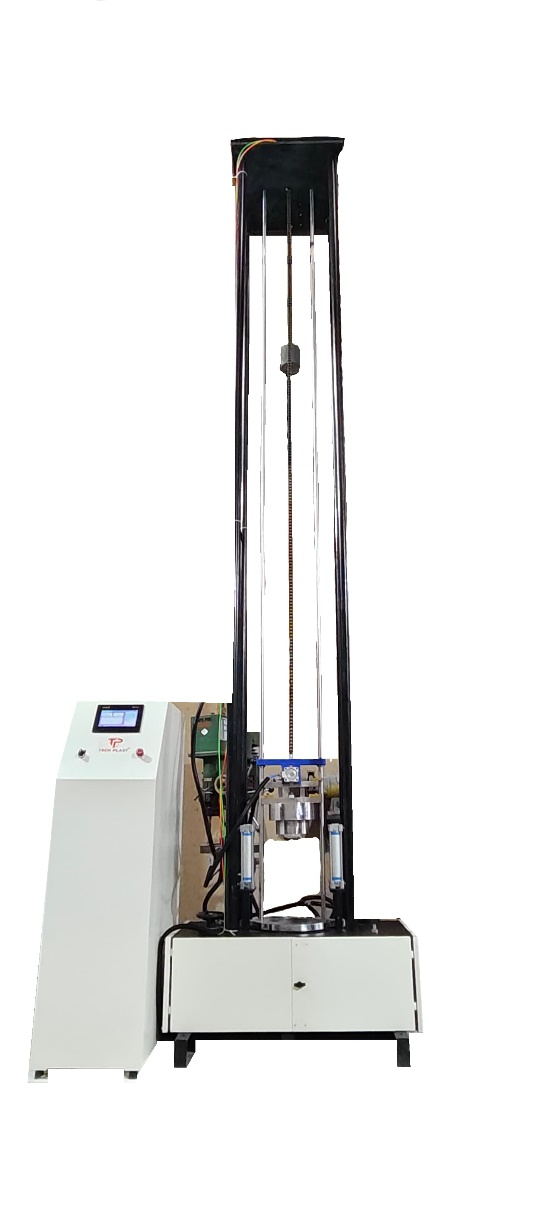

Motorised Impact Tester (Ul-651)
Specification:
- The impact height may be set between 100mm to 3350mm
- Max. dia of test sample: up to 630 mm
- Striker rising speed: 12m/min
- Striker weight: 9.1kg (φ51) and 34kg (φ150)
- Test specimen {outside diameter）: 1/2” to 6”, specimen length: 150mm
- Operation: - Automatic
- Pneumatic Cylinder = 02 Nos - 50 x 160 mm
- Solenoid Pneumatic Valve: ¼ Bsp thread and 5/2 Connection
- Base and Top Structure: 16 mm M.s Plate
- Two lead screw is used to adjust pipe at Home Position with Hand wheel
- Two nos Tie bar is used to guide Lead Screw
- Assembly is guided with 20 mm Tie bar up to 4000 meter.
- Power: 230 V AC/ 50 Hz.
- Paint: Powder Coating
Application:
UL 651 Falling weight impact tester is designed to determine the resistance to external blows of rigid PVC (40/80) conduit. Test pieces are subject to blow from a falling striker, of specified mass and shape, dropped from a known height onto the test piece. Seven out of ten specimens shall have no crack or tear shorter than 1/32”.
